Workflow Automation Best Practices: Enterprise Implementation Framework

Quick Answer

Workflow automation best practices start with fixing the process before you automate it. Then you build in small parts, lock down access, plan for errors, and track results.

Here are the five steps I follow on every project:

1. Process mapping: Turn the messy “as-is” flow into a clean “to-be” flow before you touch any software.
2. Modular design: Build small subflows that talk through REST APIs and webhooks. Avoid one giant workflow.
3. Governance and security: Use role-based access control (RBAC), OAuth 2.0, and full audit trails.
4. Exception handling: Add fallback routes, retry logic, and human-in-the-loop (HITL) checkpoints.
5. KPI tracking: Measure cycle time, throughput, and error rate every month.

Why I Wrote This Guide

I have seen automation projects go very well. I have also seen them fail badly. The difference was almost never the tool.

The projects that failed rushed into building. The teams skipped the boring work of understanding the process first. Then they spent months fixing problems they created themselves.

This guide is the framework I wish I had at the start. It covers six areas, from mapping to measuring. Each one comes from real mistakes I made or watched others make.

1. Process Discovery and Mapping: Standardize Before You Automate

Most teams want to jump straight into a tool. I get it. Building is fun, and mapping feels slow.

But mapping is where the real savings hide. When you write down every step, you often find work that nobody needs. You can delete that work and skip the automation entirely.

The “Never Automate a Broken Process” Rule

You have probably heard this rule before. I think it is mostly true, and I have learned it the hard way. If you automate a messy process, you get a faster mess. Bad handoffs, unclear owners, and missing data all stay. They just happen at machine speed. That adds technical debt, and it adds friction for everyone.

There is one small exception. Sometimes you only see the problems once you start building. So I treat mapping and building as a loop. I map first, build a small piece, then fix the map.

Here is how I check a process before I automate it. I split the tasks into two groups:

• Rule-based tasks: The same input always gives the same output. Example: “If the invoice is under $500, approve it.”
• Judgment tasks: A person has to think, guess, or read between the lines. Example: “Does this contract wording look risky?”

Rule-based tasks are the best place to start. They are easy to build and easy to test. Judgment tasks need more care, and I cover them later.

I also look for bottlenecks. A bottleneck is a step where work waits the longest. Fixing one bottleneck often helps more than automating ten small steps.

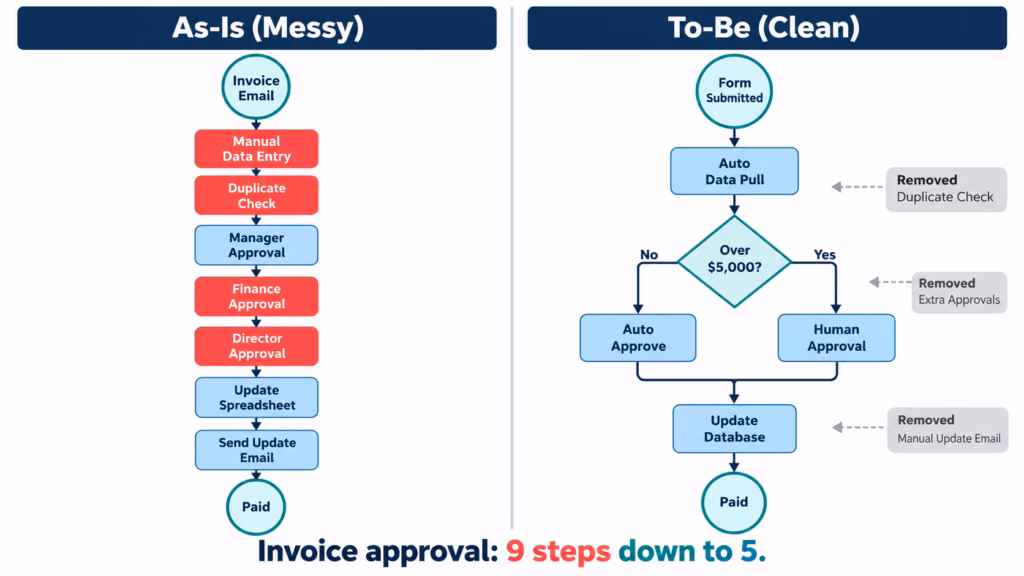

Mapping “As-Is” vs. “To-Be” States with BPMN

I use BPMN 2.0 to draw my maps. BPMN stands for Business Process Model and Notation. It is a standard set of shapes for showing how work flows.

You do not need to learn every shape. Start with these:

• Triggers: What starts the process.
• Tasks: The work someone or something does.
• Decision nodes: The “yes or no” points.
• Handoffs: Where work moves from one person or system to another.

First, I draw the “as-is” map. This shows how work really happens today, not how people say it happens. Those two are often very different.

Then I draw the “to-be” map. This is the cleaner version I want to build. I remove extra approvals, merge duplicate steps, and name one owner for each step.

A simple table helps me show the change to my team:

Step	Manual Today	Automated Target
Data entry	Person types it in	System pulls it from the form
Approval	Email chain	Automatic routing by rule
Notification	Person sends update	System sends alert
Record keeping	Spreadsheet	Central database with logs

If you can, try process mining too. Process mining tools read your system logs and show how work truly flows. They help you find hidden steps that interviews miss.

2. Architectural Design Best Practices

Once the map is clean, it is time to design. This is where many teams make a big error. They build one huge workflow that does everything.

I made this error once. The workflow had over eighty steps. When one step broke, nobody could find the cause. That was a long week.

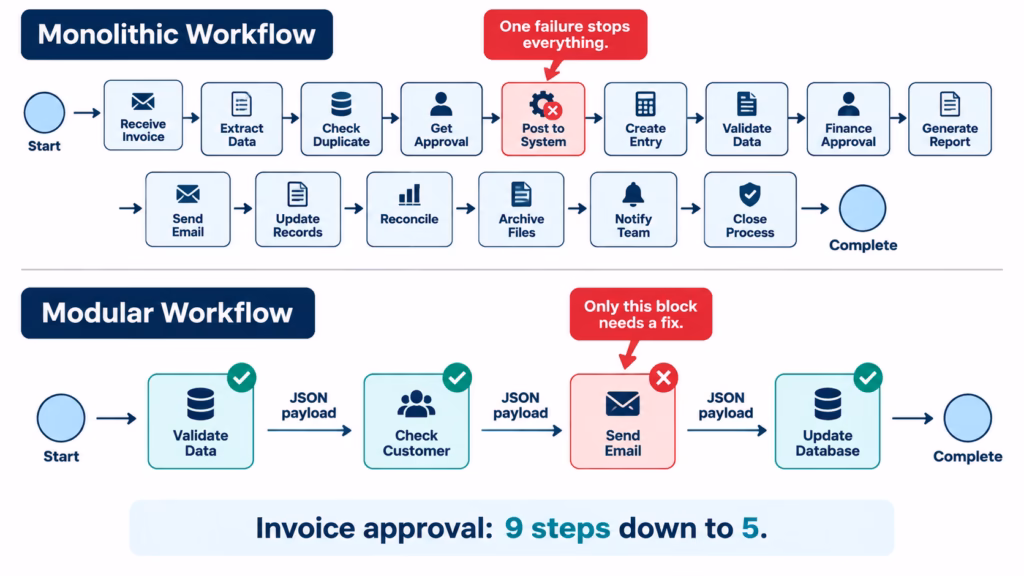

Decouple Logic with Modular Subflows

A monolithic workflow is one big chain of steps. It works fine at first. Then more people, more data, and more edge cases show up, and it starts to crack.

A better way is to build small subflows. Each one does one job well. For example, one subflow checks customer data, and another sends emails.

The subflows talk to each other through API payloads. A payload is just the data you send from one step to the next. This keeps each piece independent.

Here is why I love this approach:

• You can test each piece alone.
• You can reuse pieces across many workflows.
• When something breaks, you know where to look.
• Different team members can work on different pieces.

Implementing Event-Driven Triggers and Webhooks

There are two main ways to start a workflow. You can poll, or you can listen for events.

Polling means your workflow asks, “Is there anything new?” every few minutes. Most of the time the answer is no. That wastes server power and adds delay.

A webhook works the other way. The source system sends a message the moment something happens. Your workflow wakes up right away. It is faster and cheaper.

I use webhooks whenever the source tool allows it. I only use polling when the tool has no webhook option.

Another lesson: clean your data early. Different tools send data in different shapes. One tool says “customer_name” and another says “clientName.”

I add a small step at the start of each flow to fix this. It turns every payload into one standard JSON format. This saves me from many small bugs later.

Designing Human-in-the-Loop (HITL) Decision Checkpoints

Not every step should run alone. Some steps need a person to say yes. I add a human checkpoint in three cases:

• High-dollar approvals: For example, any payment over a set limit.
• Compliance checks: Anything a regulator might ask about later.
• Low-confidence results: When an AI tool is not sure about its answer.

Keep these checkpoints few and clear. If you add too many, you lose the speed you wanted. If you add too few, you take on real risk.

3. Selecting the Right Technology Stack (iPaaS, RPA, and AI Agents)

Tool choice comes after mapping and design. I put it here on purpose. When you pick a tool first, the tool starts to shape your process. That is backwards.

There are three main types of tools. Each fits a different job.

• iPaaS stands for integration platform as a service. It connects apps through their APIs.
• RPA stands for robotic process automation. It copies human clicks on a screen.
• AI agents use large language models (LLMs) to read text and make choices.

Choosing Between iPaaS, RPA, and Custom Code

This table shows how I compare them:

Criteria	iPaaS (Workato, Power Automate, n8n)	RPA (UiPath, Automation Anywhere)	AI Agents (LLM orchestration)
Best for	Apps with modern APIs	Old systems with no API	Messy text and reasoning
Maintenance	Low, since APIs stay stable	Medium to high, since UI changes break scripts	Varies, needs prompt tuning
Speed	Real time, in seconds	Runs on a schedule or at screen speed	Depends on model delay
Main risk	API limits and pricing tiers	Fragile scripts	Wrong or made-up answers

My simple rule is this. If the system has an API, use iPaaS. If it has no API, use RPA. If the input is messy text, add an AI step.

I also want to be honest about custom code. Sometimes a small script beats any platform. If a job is simple and rarely changes, code can be the cheapest option.

Also think about who will maintain the workflow. A powerful tool that only one person understands is a risk. I always pick a tool my team can support without me.

Transitioning from Rule-Based to Intelligent Process Automation (IPA)

Rule-based automation is great until the input gets messy. Think of a PDF invoice. Every vendor uses a different layout.

Old tools struggled here. You needed a rule for every format. It never ended.

Now I use an LLM for this kind of step. The model reads the invoice and pulls out the vendor, date, and amount. Then it sends clean data to the database.

This mix is called intelligent process automation, or IPA. The workflow stays rule-based. The AI only handles the one step that needs reading.

But AI brings new risks, and I plan for them:

• Wrong answers: I add a confidence check. Low scores go to a human.
• Cost per run: I track how much each AI call costs, since it adds up fast.
• Data privacy: I check what data goes to the model provider before I send it.
• Testing: I run a sample set of real files before going live.

I never let an AI step make a final high-risk decision alone. It suggests, and a rule or a person confirms.

4. Governance, Security, and Risk Management

Governance sounds dull. I used to skip it too. Then a team I worked with had an API key leak, and I changed my mind.

Low-code tools make this even more important. Anyone can build a workflow in a few minutes. Without rules, you soon have hundreds of flows that nobody owns.

Identity, Access Management, and Credential Security

The first rule is simple. Never hardcode a secret in a workflow. This includes API keys, passwords, and tokens.

Store them in a secure vault or in the tool’s protected environment variables. Then the workflow reads them when it runs. If you need to change a key, you change it in one place.

Next, use OAuth 2.0 when a tool supports it. It lets a workflow get limited access without sharing a password. You can also cancel that access at any time.

Then set up role-based access control, or RBAC. Not everyone needs the same power. Here is the split I use:

• Builders can create and edit workflows in the dev space.
• Reviewers can approve changes before they go live.
• Viewers can see results but cannot change anything.

I follow the least privilege rule. Give each person only the access they need for their job. It is a small habit that prevents big problems.

If you use low-code tools, add one more layer. Set up a review process for new flows built by non-technical staff. Some companies create a Center of Excellence for this. It is a small group that sets standards and helps others build safely.

Version Control and Environment Separation

Treat your workflows like software. This one change saved me many times.

Use three spaces: development, staging, and production. You build in dev. You test in staging. Only tested work goes to production.

I never edit a live workflow directly. It feels quick, but it is risky. One wrong click can break a process that people use every day.

Also keep a change history. Save each version with a note about what changed and why. If a new version fails, you can roll back in minutes.

Finally, keep audit trails that nobody can edit. An audit log records who did what and when. This matters for compliance rules like SOC 2, HIPAA, and GDPR. When an auditor asks a question, you have the answer ready.

5. Exception Handling, Error Recovery, and Monitoring

Here is a truth about automation. Things will fail. APIs go down, data arrives broken, and networks drop. The question is not whether errors will happen. The question is what your workflow does when they do. Good teams plan for this from day one.

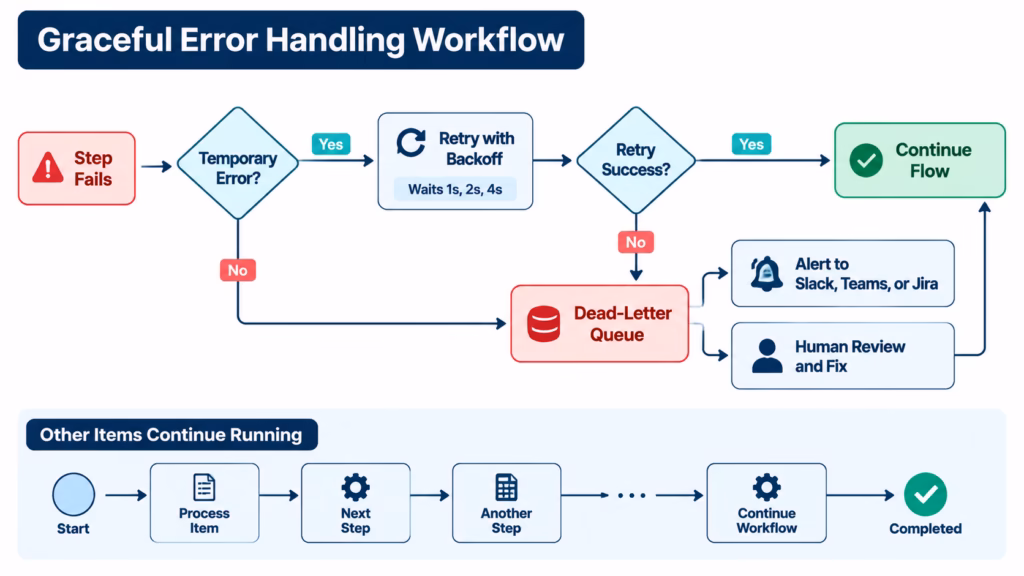

Designing Graceful Error Handling

Start with retry logic. Many errors are short. A server is busy, or the network blinks for a second. If you try again, it works.

But do not retry right away, again and again. That can make things worse. Use exponential backoff instead. You wait one second, then two, then four, and so on. This gives the other system time to recover.

Retries will not fix every problem. Some items are just bad. A record may have missing data or a wrong format.

For these, I use a dead-letter queue, or DLQ. It is a holding area for failed items. The workflow moves the bad item there and keeps going with the rest.

Without a DLQ, one bad record can stop the whole run. I have seen a single broken row block thousands of good ones. A DLQ prevents that.

I check the DLQ every day. A person reviews each item, fixes it, and sends it back through. If the same error shows up often, I fix the root cause.

Automated Alerting and Fallback Rerouting

Silent failures are the worst kind. A workflow stops, and nobody knows for days. By then the damage is big.

So I set up alerts for every important flow. When something fails, the system sends a message to Slack or Teams. For serious issues, it creates a ticket in Jira or pages someone through PagerDuty.

A good alert includes the full error payload. This means the error message, the step that failed, and the data involved. The person on call can then act without hunting for details.

I also build fallback routes. If the main path fails, the work goes to a backup path. For example, if the AI step is down, the item goes to a person for manual review.

Last, watch your service level agreements, or SLAs. An SLA is a promise about speed or uptime. Set alerts before you break the promise, not after.

6. Measuring ROI and Key Optimization Metrics

If you do not measure results, you cannot prove the value. Leaders will ask for numbers. You need to have them ready.

The most common mistake here is skipping the baseline. Before you automate, record how the process works today. Without that, you cannot show any change.

The 4 Core Workflow Automation KPIs

I track four numbers on every project. They are simple, and they tell the full story.

1. Cycle time reduction: How long it takes from the first trigger to the final result. Shorter is better.
2. Process throughput: How many tasks the system handles on its own each hour or day.
3. Error and rework rate: The share of runs that fail or need a person to fix them.
4. FTE cost savings: The full-time equivalent hours you free up for more valuable work.

Be careful with the last one. Saved hours only count if people use that time well. I always ask what the team will do with the extra time.

For ROI, use a simple formula. Take the yearly benefit and subtract the yearly cost. Then divide by the yearly cost.

Do not forget hidden costs. Include licenses, build time, training, and ongoing maintenance. Many teams forget maintenance, and it can be large.

Also, report the payback period. This is how many months it takes to earn back your spending. Leaders like this number because it is easy to understand.

Establishing Continuous Audit Loops

Automation is not a one-time project. Systems change, and workflows drift. I run a workflow audit twice a year. In each audit, I look for triggers nobody uses and flows with no owner. I turn those off.

I also check for old API endpoints. Vendors retire old versions all the time. If you miss that, a flow that worked for years can suddenly stop.

Finally, I review the KPIs. If a number is getting worse, I find out why. Often a small fix brings it back on track.

Frequently Asked Questions

What is the most common mistake in workflow automation?

The most common mistake is automating a process before mapping it. If the process is broken, automation makes the errors happen faster. Always map and clean the process first.

What is the difference between iPaaS and RPA?

iPaaS connects systems directly through cloud APIs. RPA copies human clicks on a screen. Use iPaaS when an API exists, and use RPA when it does not.

How do AI agents fit into traditional workflow automation?

AI agents handle steps that rules cannot. They read messy text, sort items by likelihood, and summarize data. They work best inside a structured workflow with clear checks around them.

Final Thoughts

Good workflow automation is not about fancy tools. It is about steady habits. Map first, build small, protect access, plan for errors, and measure results.

If you are just starting, pick one simple process. Apply these six steps and track the numbers. Then use what you learn to take on bigger ones.
